We are an unmistakable Stainless Steel Socket Weld Full Coupling makers and Socket Weld Coupling Line Fittings providers in the continuous business area. We offer Full Coupling Socket Weld Fittings, considering everything, and shapes at moderate expenses. These partnership weld full coupling class 150 widely used in various application industry, for instance, petrochemicals, power age, transport building, substance, quiets, etc. The terrible material which is used to make our carbon steel association weld full coupling and ASME B16.11 Socket Weld Full Coupling fittings are unadulterated and rust free.

Our Meraki Star Metals Oil & Gas Equipment Trading L.L.C. Steel Socket Weld Full Coupling pieces and ANSI B16.11 Socket Weld Full Coupling, SS Designed Socket weld Coupling instruments are impervious to pitting and segregated use. Speak with us and we promise you transport of crucial worth things that satisfy public and rules at sensible expenses, all around. The testing of the Formed coalition weld full coupling is likewise wrapped up by ensuring that no unpleasant nature of the thing is moved to the buyers. The test supports including creation line test articulation are given to the buyer as indicated by EN 10204/3.1B, outsider test report, radiography test report is advanced. Packaging during the hour of Fabricated association weld full coupling dispatching is done carefully. The waterproof packaging and wooden cases/beds packaging is done. producers of Socket Weld Full Coupling in UAE.

Construction Blog

Socket Weld Full Coupling Elbow Forged Fittings Manufacturers, Socket Weld Full Coupling Elbow Forged Fittings Suppliers, Socket Weld Full Coupling Elbow Forged Fittings Stcokists, Socket Weld Full Coupling Elbow Forged Fittings Exporters

Socket Weld Full Coupling Elbow Forged Fittings Manufacturers in UAE, Socket Weld Full Coupling Elbow Forged Fittings Suppliers in UAE, Socket Weld Full Coupling Elbow Forged Fittings Stcokists in UAE, Socket Weld Full Coupling Elbow Forged Fittings Exporters in UAE

We are stockist of ASME B16.11 full coupling which is used in various vehicle industry and metal industry. Thing unfaltering quality and execution has made us a basic exporter and distributer of Carbon Steel Produced Socket Weld Full Coupling. Call us for Full Coupling SW NPT to start decreased costs. Check once our class 3000 full coupling, SS Full Coupling cost going prior to buying Socket Weld Full Coupling, Hardened Steel full coupling from India or China. Purchase truly Stainless Steel Socket Weld Full Coupling, class 3000 full coupling, most extremely brilliant plan, cost, we will give free occasion of BSPP full coupling. So, in case you are searching for the best of Socket Weld Full Coupling or Full Coupling SW NPT, ASME B16.11 full coupling near you with most brief timeframe transport or a free fundamental of Treated Steel full coupling, BSP Full Coupling.

Stainless Steel Socket Weld Full Coupling are depended on to work with different sorts of loads impeccably, it is perpetually protected to push use isolating, disengaged separating, pitting, and oxidation and bear high warmth. SS Produced Socket weld Coupling doubtlessly could be a connector used to screw two pieces of line together. ASME B16.11 full coupling is mulling over the status quo held tight one end and the furthest edge is welded or something else ensured going to the including. BSP full coupling notice clear applications inside the flying industry as connectors to compacted fuel having.

Socket Weld Full Coupling Elbow Forged Fittings Manufacturers in Dubai, Socket Weld Full Coupling Elbow Forged Fittings Suppliers in Dubai, Socket Weld Full Coupling Elbow Forged Fittings Stcokists in Dubai, Socket Weld Full Coupling Elbow Forged Fittings Exporters in Dubai

Specifications Forged Full Coupling
Dimension Specification ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Full Coupling Forged Fittings Thread NPT, BSPT, BSPP
Full Coupling FittingsType DN15-DN1200
End Threaded, Welding, JIC
Full Coupling Fittings Pressure Rating Threaded end-2000lb/ 3000lb/ 6000lbs Full Coupling
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Full Coupling
Size Range 1/8" NB TO 4" NB
Manufacturing process Push, Press, Forge, Cast, etc.
Full Coupling Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Full Coupling Fittings
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Full Coupling To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc

Carbon Steel Full Coupling
  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694
Stainless Steel Socket weld Full Coupling
  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel Full Coupling
  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Titanium Full Coupling
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7
Inconel Full Coupling
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel x750
Copper Full Coupling T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Full Coupling Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Brass Full Coupling 3602 / 2604 / H59 / H62 / etc.
Hastelloy Full Coupling Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X
Monel Full Coupling Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 Full Coupling Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium Full Coupling 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Full Coupling Nickel 200, Nickel 201
Duplex Full Coupling S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Full Coupling S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Full Coupling Incoloy 800, Incoloy 800H, Incoloy 800HT (UNS N08800), Incoloy 825 (UNS N08825)
254 Smo Full Coupling SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic Full Coupling Nimonic 75, Nimonic 80A, Nimonic 90
Other Full Coupling material Tin bronze, Alumunum bronze, Lead bronze

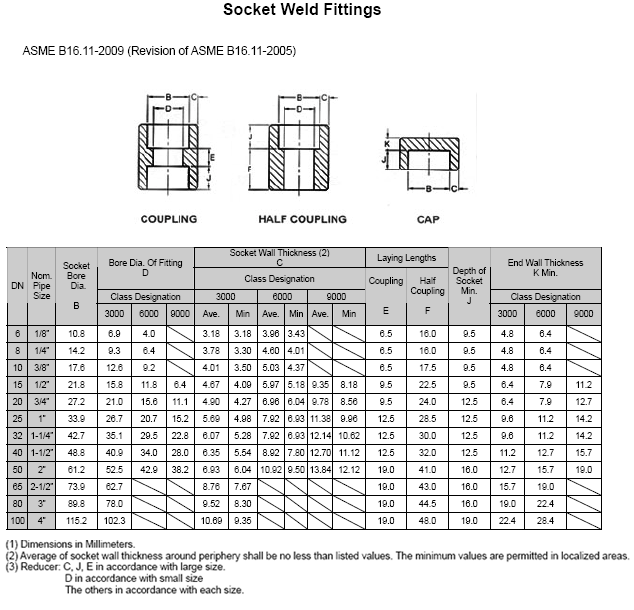

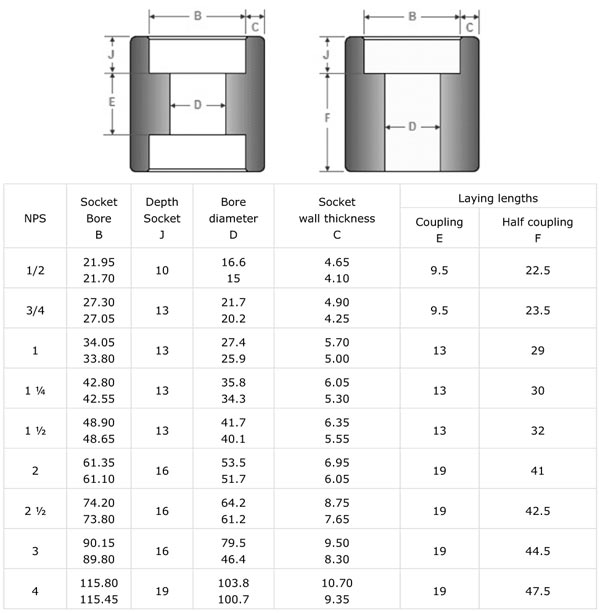

DIMENSIONS SOCKET WELD COUPLINGS AND HALF-COUPLINGS 6000 LBS-NPS 1/2 – 2 ACCORDING TO ASME B16.11

General notes:
Dimensions are in millimeters unless otherwise indicated.
Socket Bore (B) – Maximum and Minimum dimensions.
Bore Diameter (D) – Maximum and Minimum dimensions.
Socket wall thickness – (C) – Average of Socket wall thickness.
Dimensional tolerances laying lengths – (E & F)
NPS 1/2 and NPS 3/4 = +/- 1.5 mm
NPS 1 to NPS 2 = +/- 2 mm
NPS 2½ to NPS 4 = +/- 2.5 mm

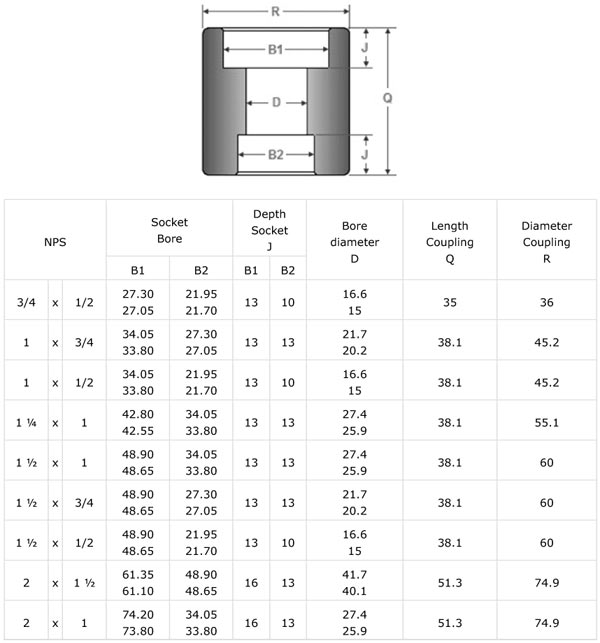

DIMENSIONS SOCKET WELD REDUCING COUPLINGS – 3000 LBS – NPS 1/2 – 2 ACCORDING TO ASME B16.11

General notes:
Dimensions are in millimeters unless otherwise indicated.
Socket Bore (B1 / B2) – Maximum and Minimum dimensions.
Bore Diameter (D) – Maximum and Minimum dimensions.

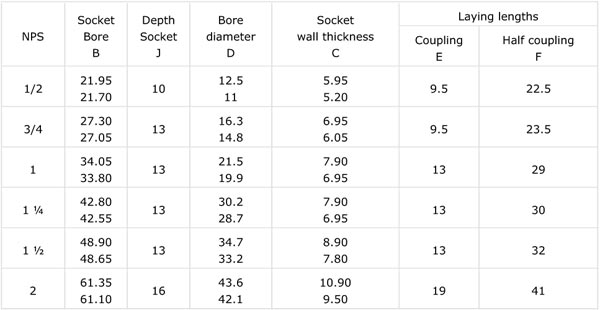

Dimensions Socket Weld Reducing Couplings – 6000 Lbs – Nps 1/2 – 2 According To Asme B16.11
