ASME B16.5 Loose flanges types to fit elbows, valves and all things considered for such a pipeline part being utilized. Carbon Steel Loose flanges is a contraption that is welded onto the complete line to make half of a flanged coupling. Containing level steel passing on with puzzle openings around the edge and an opening in the center the size of the line that should have been welded onto spread out steel Loose flanges, the part can be made of carbon steel or Stainless steel to meet the proposed application.

ASME B16.5 Loose Flanges makers in UAE. We are dispatching SS Loose Flanges, Loose Exhaust Flanges, EN 1092-2 PN16 Loose plate flanges and Loose Plate Flanges at bound costs thinking about reasonable master hours in UAE and critical wellspring of first in class ASME B16.47 Series a Loose Flanges, most extremely savvy game plan, cost open in Dubai, India.

Meraki Star Metals Oil & Gas Equipment Trading L.L.C. We have worked with stores of Quarrel 2642 Loose flanges, PN10 Loose Flanges, EN1092-1 Loose Flanges and jis 10k Loose Flanges, a very smart arrangement, worth once-over in UAE. Stainless Steel Loose Flanges is admitted by Saudi Aramco. We keep up the beast proficiently of MSS SP-44 SS Loose Line Flange. Meraki Star Metals Oil & Gas Equipment Trading L.L.C. is a scientist and transporter of Duplex Steel Loose hubber flanges, Racket 86029 PN10 Loose hubber flanges in various sizes.

Stacking massive level of ASTM A350 Gr LF2 Loose Flanges to buy, most extremely savvy plan, cost in UAE, enquire our expense of Carbon Steel Loose Flanges including Level Face Loose Flanges, AWWA C207 Loose steel Flanges and ASME B16.5 Class 300 Loose Flanges. Loose Line Flanges to Thailand, Russia, Kuwait, France, Australia, Malaysia, USA, Iran, Italy, Sweden, Egypt, Bahrain, Turkey, UAE, Germany, Qatar, Singapore, Indonesia, UK, Israel, Oman, Canada, Sri Lanka and Saudi Arabia.

Loose Flanges Manufacturers, Loose Flanges Suppliers, Loose Flanges Stockists, Loose Flanges Exporters

Loose Flanges Manufacturers in UAE, Loose Flanges Suppliers in UAE, Loose Flanges Stockists in UAE, Loose Flanges Exporters in UAE

We are the clearest giving relationship of ASTM A105 Loose Flanges, most exceptionally savvy game plan, cost as we are one of the most shocking supplier and carrier of Blend steel Loose Flanges in UAE. We have our stocking wholesalers in Delhi, Bangalore, Surat (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our ASTM B381 F5 Loose Flanges cost going before buying Shaped Loose Strain Driven Flanges from India or China. Other than mail for our live deftly of Hastelloy Loose Sae Flanges to check types and sizes, with our set up stock we can give you best expense of EN 1092-1 Sort 02 Carbon Steel Loose Flanges.

We can nearly give free event of ASME B16.5 Free Flange,Meraki Star Metals Oil & Gas Equipment Trading L.L.C. is having our Seller and Trader in Aurangabad, Kolkata, Faridabad, Ludhiana, Chennai (Madras), Chhattisgarh, Vadodara, Tamil Nadu, Pune, Ahmedabad, Maharashtra, Nagpur,Bangalore, Punjab, Rajkot, Delhi, West-Bengal, Khopoli, Raipur, Indore, Haryana, Gujarat, Uttar Pradesh, Jaipur, Rajasthan, Karnataka, Ghaziabad, Gurgaon, Kolhapur, Bhosari, Madhya Pradesh, Karnataka. So assuming you are searching for best cost of BS 4504 PN10 Split free or ASME B16.47 Series b Free Rib, Solidified Steel Free Spine close to you with briefest time improvement or free event of ANSI b16 5 Free Rib.

Loose Flanges Manufacturers in Dubai, Loose Flanges Suppliers in Dubai, Loose Flanges Stockists in Dubai, Loose Flanges Exporters in Dubai

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
ASME B16.5 Loose Flanges Size Chart	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Loose Plate Flanges Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Loose Flanges Pressure Rating ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Loose Steel Flanges
Loose Plate Flanges Pressure Calculation in DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Loose Flanges
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Loose Plate Flanges
UNI	6Bar 10Bar 16Bar 25Bar 40Bar Loose Plate Flanges
EN	6Bar 10Bar 16Bar 25Bar 40Bar Split Loose Flanges
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types of Loose Hubbed Flange	Forged / Threaded / Screwed / Plate
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Production technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin	Indian / West Europe / Japan / USA / Korean
Manufacturer of	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. Loose Flanges: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Split Loose Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Loose Plate Flanges Uses & application	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Export to	Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc

						Drilling

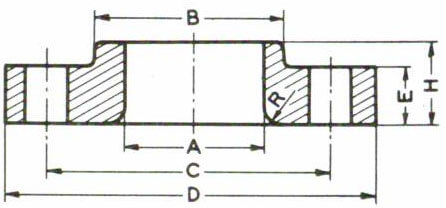

Nominal Bore	Dia. (D)	Thick. (E)	Dia. (B)	Dia. (A)	Height (H)	Nbr	Holes	Dia. (C)
1/2"	90	11.2	30	22.9	16	4	15.87	60.3
3/4"	100	12.7	38	28.2	16	4	15.87	69.9
1"	110	14.3	49	34.9	17	4	15.87	79.4
1 1/4"	115	15.9	59	43.7	21	4	15.87	88.9
1 1/2"	125	17.5	65	50.0	22	4	15.87	98.4
2"	150	20.7	78	62.5	25	4	19.05	120.7
2 1/2"	180	22.3	90	75.4	29	4	19.05	139.7
3"	190	23.9	108	91.4	30	4	19.05	152.4
3 1/2"	215	23.9	122	104.1	32	8	19.05	177.8
4"	230	23.9	135	116.8	33	8	19.05	190.5
5"	255	23.9	164	144.4	36	8	22.22	215.9
6"	280	25.4	192	171.4	40	8	22.22	241.3
8"	345	28.6	246	222.2	44	8	22.22	298.5
10"	405	30.2	305	277.4	49	12	25.40	362.0
12"	485	31.8	365	328.2	56	12	25.40	431.8
14"	535	35.0	400	360.2	79	12	28.57	476.3
16"	595	36.6	457	411.2	87	16	28.57	539.8
18"	635	39.7	505	462.3	97	16	31.75	577.9
20"	700	42.9	559	514.4	103	20	31.75	635.0
24"	815	47.7	663	616.0	111	20	34.92	749.3

The dimensions are in millimeters
Source : ASME B16.5 – 2018

						Drilling
Nominal Bore	Dia. (D)	Thick. (E)	Dia. (B)	Dia. (A)	Height (H)	Nbr	Holes	Dia. (C)
1/2"	95	14.3	38	22.9	22	4	15.87	66.7
3/4"	115	15.9	48	28.2	25	4	19.05	82.6
1"	125	17.5	54	34.9	27	4	19.05	88.9
1 1/4"	135	19.1	64	43.7	27	4	19.05	98.4
1 1/2"	155	20.7	70	50.0	30	4	22.22	114.3
2"	165	22.3	84	62.5	33	8	19.05	127.0
2 1/2"	190	25.4	100	75.4	38	8	22.22	149.2
3"	210	28.6	117	91.4	43	8	22.22	168.3
3 1/2"	230	30.2	133	104.1	44	8	22.22	184.2
4"	255	31.8	146	116.8	48	8	22.22	200.0
5"	280	35.0	178	144.4	51	8	22.22	235.0
6"	320	36.6	206	171.4	52	12	22.22	269.9
8"	380	41.3	260	222.2	62	12	25.40	330.2
10"	445	47.7	321	277.4	95	16	28.57	387.4
12"	520	50.8	375	328.2	102	16	31.75	450.8
14"	585	54.0	425	360.2	111	20	31.75	514.4
16"	650	57.2	483	411.2	121	20	34.29	571.5
18"	710	60.4	533	462.3	130	24	34.29	628.6
20"	775	63.5	587	514.4	140	24	34.29	685.8
24"	915	69.9	702	616.0	152	24	41.27	812.8

The dimensions are in millimeters
Source : ASME B16.5 – 2018

						Drilling
Nominal Bore	Dia. (D)	Thick. (E)	Dia. (B)	Dia. (A)	Height (H)	Nbr	Holes	Dia. (C)
1/2"	95	14.3	38	23.6	22	4	15.87	66.7
3/4"	115	15.9	48	29.0	25	4	19.05	82.6
1"	125	17.5	54	35.8	27	4	19.05	88.9
1 1/4"	135	20.7	64	44.4	29	4	19.05	98.4
1 1/2"	155	22.3	70	50.6	32	4	22.22	114.3
2"	165	25.4	84	63.5	37	8	19.05	127.0
2 1/2"	190	28.6	100	76.2	41	8	22.22	149.2
3"	210	31.8	117	92.2	46	8	22.22	168.3
3 1/2"	230	35.0	133	104.9	49	8	25.40	184.2
4"	275	38.1	152	117.6	54	8	25.40	215.9
5"	330	44.5	189	144.4	60	8	28.57	266.7
6"	355	47.7	222	171.4	67	12	28.57	292.1
8"	420	55.6	273	222.2	76	12	31.75	349.2
10"	510	63.5	343	276.2	111	16	34.92	431.8
12"	560	66.7	400	328.6	117	20	34.92	489.0
14"	605	69.9	432	360.4	127	20	38.10	527.0
16"	685	76.2	495	411.2	140	20	41.27	603.2
18"	745	82.6	546	462.0	152	20	44.45	6654.0
20"	815	88.9	610	512.8	165	24	44.45	723.9
24"	940	101.6	718	614.4	184	24	50.80	838.2
