SS 304/304L/304H Sheets and Plates are very used by the paper and squash experiences, material gear producer, condensers in oil based product and atomic fuel age stations, and petrochemical dealing with stuff makers. The hypothesis behind the nuances of these grade sheets and plates is tended to by the ASTM A240 and ASME SA240 rules.
Discription
| Item Name | Sanitary Stainless Steel SMS 1145 Union |
| Standards | SMS 1145 ( Whole Coupling ) SMS 1146 ( Thread male ) SMS 1147 ( Liner ) SMS 1148 ( Nut ) SMS 1149 ( Seal ) |
| Sizes | 1" - 6" DN25 - DN104 |
| Material | SS304 / SS316L |
| Seal | Silicone / EPDM / Viton / NBR / PTFE |
| Connection Type(s) | Weld End / Thread End / Blind End / Hose Adapter / Expanding |
| Operation Type(s) | × |
| Handles | × |
| Surface Finishing | Ra ≤ 0.8μm |
| Working Temperature | -10°C to 102°C ( EPDM ) |
| Pressure Rating | Up to a maximum working pressure of 6 Bar ( 87 PSI ) ( at ambient temperatures ) |
| Application Scopes | Dairy / Food / Beverage / Breweries Pharmacy / Cosmetic / Chemical / Biotech |
| Marking | Laser Marking |
Sms Union Manufacturers in Dubai, Sms Union Suppliers in Dubai, Sms Union Stcokists in Dubai, Sms Union Exporters in Dubai
Specification
| SMS-13R SIZE |
ØA | B | ØC | L | SLOTS |
|---|---|---|---|---|---|
| 25 | 32.3 | RD 40×1/6 | 51 | 19 | 6 |
| 32 | 40.3 | RD 48×1/6 | 60 | 22 | 6 |
| 38 | 48.5 | RD 60×1/6 | 74 | 23 | 6 |
| 50 | 61 | RD 70×1/6 | 84 | 24 | 6 |
| 63 | 74 | RD 85×1/6 | 100 | 28 | 6 |
| 76 | 87 | RD 98×1/6 | 114 | 30 | 6 |
| 101.6 | 113 | RD 125×1/4 | 138 | 31 | 6 |
| 104 | 113 | RD 125×1/4 | 138 | 31 | 6 |
| 102.5 | 117 | RD 132×1/6 | 150 | 31 | 6 |

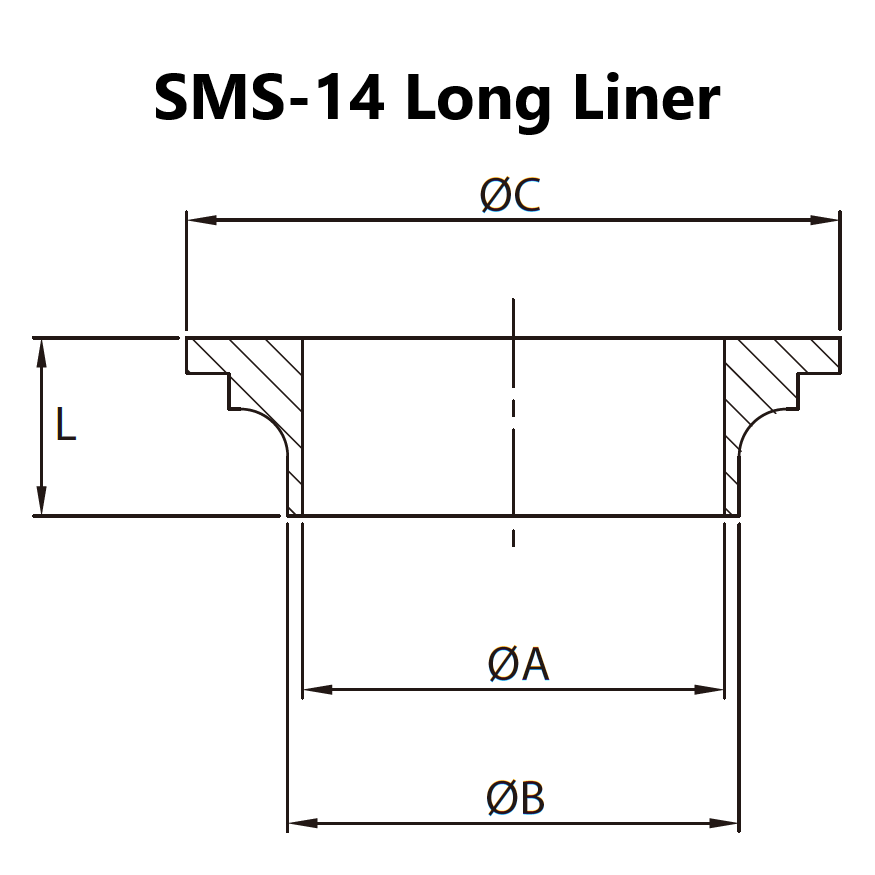

| SMS-14 SIZE |
ØA | ØB | ØC | L |
|---|---|---|---|---|
| 25 | 22.5 | 25 | 35.5 | 15.5 |
| 38 | 35.5 | 38 | 55 | 16 |
| 50 | 48.5 | 51 | 65 | 17 |
| 63 | 60.5 | 63.5 | 80 | 17 |
| 76 | 72.9 | 76.1 | 93 | 19 |
| 101.6 | 97.6 | 101.6 | 118 | 19 |
| 104 | 100 | 104 | 118 | 19 |
| 102.5 | 98.5 | 102.5 | 127 | 19 |
| SMS-15 SIZE |
ØA | ØB | C | L |
|---|---|---|---|---|
| 25 | 22.5 | 25 | RD 40×1/6 | 19 |
| 38 | 35.5 | 38 | RD 60×1/6 | 23 |
| 50 | 48.5 | 51 | RD 70×1/6 | 23 |
| 63 | 60.5 | 63.5 | RD 85×1/6 | 27 |
| 76 | 72.9 | 76.1 | RD 98×1/6 | 27 |
| 101.6 | 97.6 | 101.6 | RD 125×1/4 | 30 |
| 104 | 100 | 104 | RD 125×1/4 | 30 |
| 102.5 | 98.5 | 102.5 | RD 132×1/6 | 35 |
