SS 304/304L/304H Sheets and Plates are very used by the paper and squash experiences, material gear producer, condensers in oil based product and atomic fuel age stations, and petrochemical dealing with stuff makers. The hypothesis behind the nuances of these grade sheets and plates is tended to by the ASTM A240 and ASME SA240 rules.
Discription
| Item Name |
Sanitary Stainless Steel Tri-Clamp Ferrule |
| Standards |
3A / SMS |
| Sizes |
1/2" - 12"
DN10 - DN300 |
| Material |
SS304 / SS316L |
| Seal |
Silicone / EPDM / Viton / NBR / PTFE |
| Connection Type(s) |
Weld End / Clamp End / Thread End |
| Operation Type(s) |
× |
| Handles |
× |
| Surface Finishing |
Ra ≤ 0.8μm |
| Working Temperature |
70 °F ( ≈ 21 °C ) |
| Pressure Rating |
Max. 200 psi |
| Application Scopes |
Dairy / Food / Beverage / Pharmacy / Cosmetic / Chemical |
| Marking |
Laser Marking |
TC Clamp
Manufacturers in Dubai, TC Clamp
Suppliers in Dubai, TC Clamp
Stcokists in Dubai, TC Clamp
Exporters in Dubai

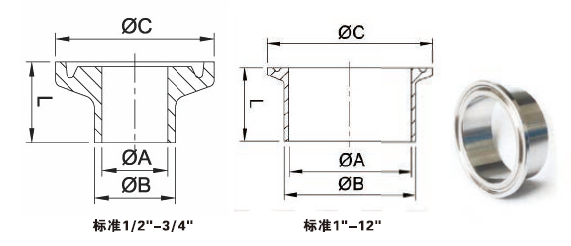

Specification
| SIZE |
ØA (MM) |
ØB (MM) |
ØC (MM) |
WMP L1 (MM) |
MMP L2 (MM) |
AMP L3 (MM) |
| 1/4" |
3.9 |
6.35 |
25 |
12.7 |
21.5 |
28.6 |
| 1/2" |
9.4 |
12.7 |
25 |
12.7 |
21.5 |
28.6 |
| DN15 |
9.7 |
12.7 |
25.4 |
12.7 |
21.5 |
28.6 |
| 3/4" |
15.75 |
19.05 |
25 |
12.7 |
21.5 |
28.6 |
| DN20 |
15.95 |
19.05 |
25.4 |
12.7 |
21.5 |
28.6 |
| 1" |
22.1 |
25.4 |
50.5 |
12.7 |
21.5 |
28.6 |
| DN25 |
22.5 |
25 |
50.5 |
- |
21.5 |
28.6 |
| 1-1/4" |
28.45 |
31.75 |
50.5 |
12.7 |
21.5 |
28.6 |
| 1-1/2" |
34.8 |
38.1 |
50.5 |
12.7 |
21.5 |
28.6 |
| DN38 |
35.5 |
38.1 |
50.5 |
- |
21.5 |
28.6 |
| 2" |
47.5 |
50.8 |
64 |
12.7 |
21.5 |
28.6 |
| DN51 |
48.5 |
51 |
64 |
- |
21.5 |
28.6 |
| 2-1/2" |
60.2 |
63.5 |
77.5 |
12.7 |
21.5 |
28.6 |
| DN63 |
60.5 |
63.5 |
77.5 |
- |
21.5 |
28.6 |
| DN76 |
72.9 |
76.1 |
91 |
- |
21.5 |
28.6 |
| 3" |
72.9 |
76.2 |
91 |
12.7 |
21.5 |
28.6 |
| DN104 |
100 |
104 |
119 |
- |
21.5 |
28.6 |
| 4" |
97.4 |
101.6 |
119 |
15.8 |
21.5 |
28.6 |
| 6" |
146.86 |
152.5 |
166.87 |
- |
21.5 |
28.6 or 38.1 |
| 8" |
197.66 |
203.3 |
217.67 |
- |
21.5 |
28.6 or 38.1 |
| 10" |
247.2 |
254 |
268.47 |
- |
21.5 |
28.6 or 38.1 |
| 12" |
298 |
304.8 |
319.27 |
- |
21.5 |
28.6 or 38.1 |
